How to Deploy Jenkins v2.426.2 in Docker Swarm Behind Caddy v2.7.6

Jenkins is the leading open-source automation server built with Java. With its massive plugin ecosystem, you can use it to automate virtually anything in your development workflow.

Today, I am going to show you how to deploy Jenkins v2.426.2 in a Docker Swarm Cluster using Docker Compose, sitting securely behind a Caddy v2.7.6 reverse proxy.

If you want to learn more about Jenkins, please check out the links below:

1. Official Website
2. Official Documentation
3. GitHub Repository

Let’s start with the actual deployment.

Prerequisites

Please ensure you fulfill the following requirements before proceeding with the deployment:

1. A Docker Swarm Cluster configured with GlusterFS for persistent storage.
2. Caddy deployed as the ingress reverse proxy to expose microservices externally.

Introduction to Jenkins

Jenkins is primarily used to automate continuous integration and continuous delivery (CI/CD) pipelines. It is commonly used for the following tasks:

• Building projects
• Running automated tests to detect bugs or issues
• Analyzing code quality
• Deploying or delivering software to production environments

Jenkins uses robust Pipeline functionality to achieve these tasks. You can create and configure a pipeline project using a Jenkinsfile, the modern Blue Ocean interface, the Classic UI, or directly through SCM polling.

Persisting Jenkins Data with GlusterFS

Containers deploy quickly and make efficient use of system resources. However, their filesystems are ephemeral. If a container restarts, local data is lost.

To overcome this, we use GlusterFS. I previously set up a replicated GlusterFS volume to ensure data is mirrored across all nodes in the cluster.

The volume is mounted across all nodes. When data is written to the /mnt partition, it is instantly replicated.

Persistent application state is critical for Jenkins so that you don’t lose your job configurations, plugin installations, and build history.

Create a persistent folder in the /mnt directory to map to the /var/jenkins_home container volume:

cd /mnt
sudo mkdir -p jenkins-data

---

Prepare the Deployment Environment

We will use Docker Compose to define the deployment environment.

Navigate to the /opt directory on your Swarm manager node and create the configuration directory for Jenkins:

cd /opt
sudo mkdir -p jenkins
cd jenkins
sudo touch jenkins.yml

Jenkins Docker Compose Configuration

Open jenkins.yml using your editor:

sudo nano jenkins.yml

Paste the following Docker Compose configuration. Notice that we are mapping /var/run/docker.sock so that Jenkins can spawn Docker containers for its build agents.

version: "3.7"

services:
  jenkins:
    image: tuneitme/jenkins:latest
    volumes:
      - /mnt/jenkins-data:/var/jenkins_home
      - /var/run/docker.sock:/var/run/docker.sock
    networks:
      - caddy
    deploy:
      placement:
        constraints: [node.role == worker]
      replicas: 1
      update_config:
        parallelism: 2
        delay: 10s
      restart_policy:
        condition: on-failure

volumes:
  jenkins-data:
    driver: "local"

networks:
  caddy:
    external: true

Caddyfile Configuration

Here is the production-ready Caddyfile required to expose Jenkins securely. Learn more about writing Caddyfiles here.

{
    email you@example.com
    default_sni jenkins
    cert_issuer acme
    acme_ca [https://acme-v02.api.letsencrypt.org/directory](https://acme-v02.api.letsencrypt.org/directory)

    servers {
        metrics
        protocols h1 h2c h3
        strict_sni_host on
        trusted_proxies cloudflare {
            interval 12h
            timeout 15s
        }
    }
}

jenkins.example.com {
    log {
        output file /var/log/caddy/jenkins.log {
            roll_size 20mb
            roll_keep 2
            roll_keep_for 6h
        }
        format console
        level error
    }
    encode gzip zstd
    reverse_proxy jenkins:8080
}

If you want more insight into deploying Caddy in a Docker Swarm cluster, check out my previous post on Caddy.

Full Stack Deployment (Combined)

If you prefer to deploy Caddy and Jenkins together in a single stack, here is the combined docker-compose.yml file.

version: "3.7"

services:
  caddy:
    image: tuneitme/caddy
    ports:
      - "80:80"
      - "443:443"
    networks:
      - caddy
    volumes:
      - ./Caddyfile:/etc/caddy/Caddyfile
      - /mnt/caddydata:/data
      - /mnt/caddyconfig:/config
      - /mnt/caddylogs:/var/log/caddy
    deploy:
      placement:
        constraints:
          - node.role == manager
      replicas: 1
      update_config:
        parallelism: 2
        delay: 10s
      restart_policy:
        condition: on-failure

  jenkins:
    image: tuneitme/jenkins
    volumes:
      - /mnt/jenkins-data:/var/jenkins_home
      - /var/run/docker.sock:/var/run/docker.sock
    networks:
      - caddy
    deploy:
      placement:
        constraints: [node.role == worker]
      replicas: 1
      update_config:
        parallelism: 2
        delay: 10s
      restart_policy:
        condition: on-failure

volumes:
  caddydata:
    driver: "local"
  caddyconfig:
    driver: "local"
  caddylogs:
    driver: "local"
  jenkins-data:
    driver: "local"

networks:
  caddy:
    external: true

I used a custom Caddy Docker image bundled with specific plugins (like Cloudflare DNS) for my environment, and a custom Jenkins container pre-bundled with the Blue Ocean plugin.

You can find the custom Docker images linked below:

• Tuneit Caddy Docker Image
• Tuneit Jenkins Docker Image

Deploy Jenkins to Docker Swarm

Now it’s time to deploy our jenkins.yml using the following command:

docker stack deploy --compose-file jenkins.yml jenkins

In Docker Swarm, whatever you deploy via compose is called a “stack,” and it contains multiple “services.”

Check the status of the deployment to ensure it scheduled properly:

docker stack ps jenkins

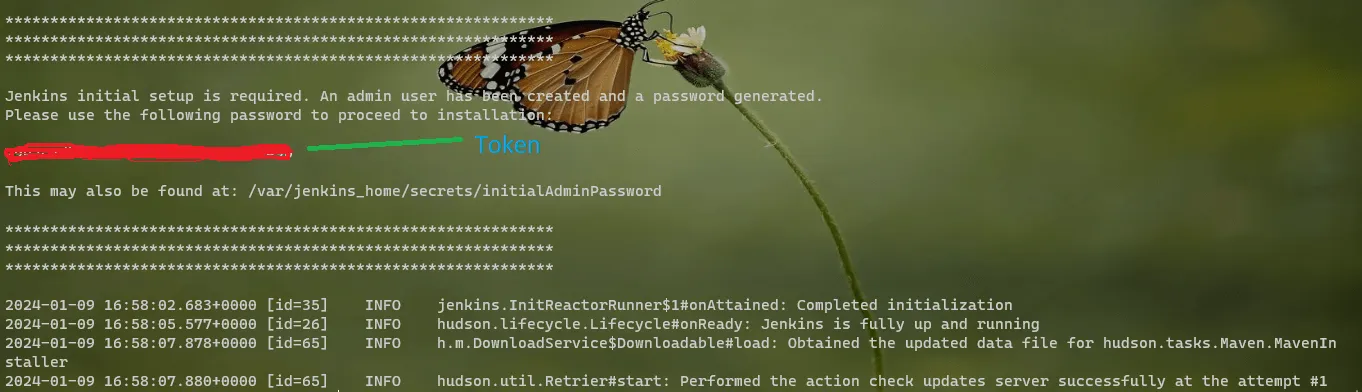

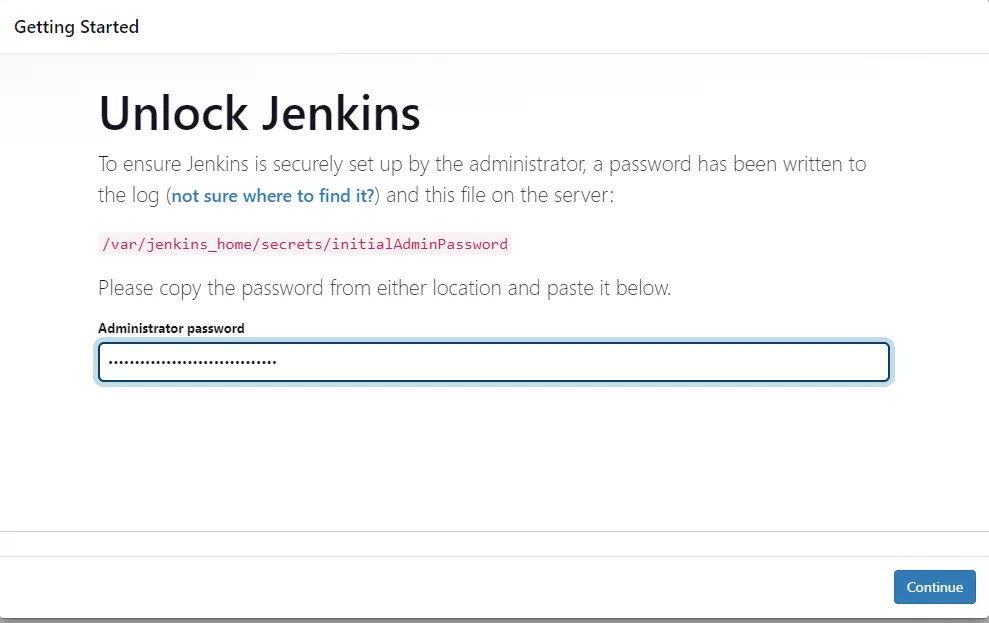

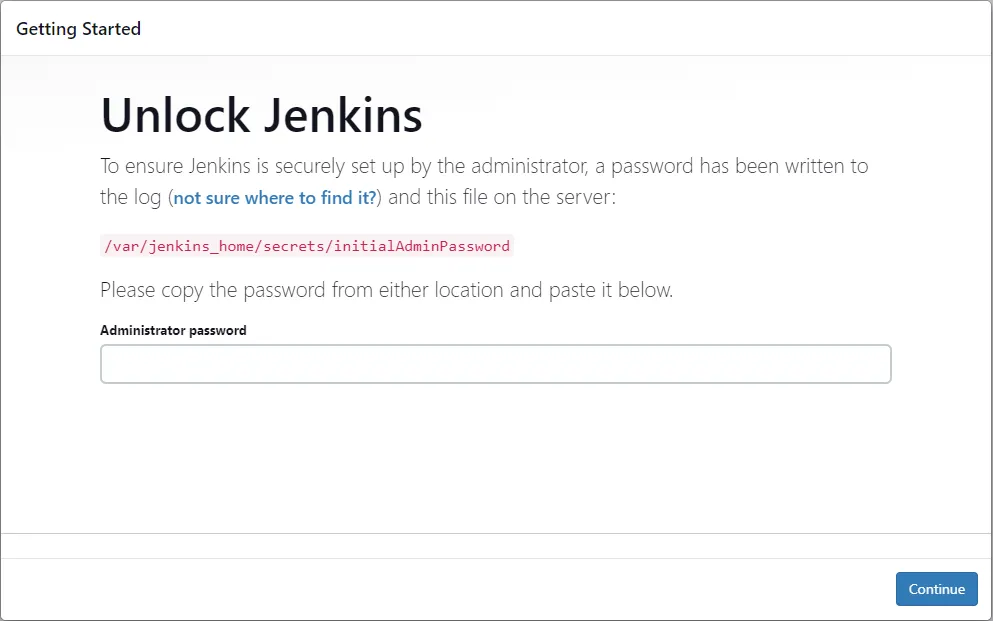

Check the Jenkins server logs to retrieve your initial admin password:

docker service logs jenkins_jenkins

You will notice that Caddy automatically intercepts the external traffic, redirects it to HTTPS, and provisions Let’s Encrypt certificates.

Access and Configure Jenkins

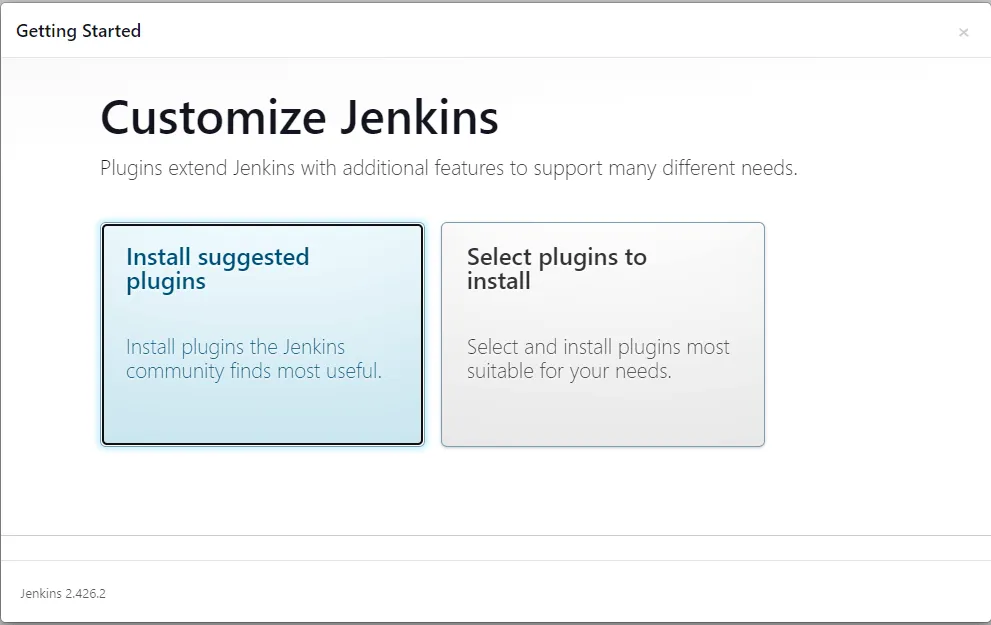

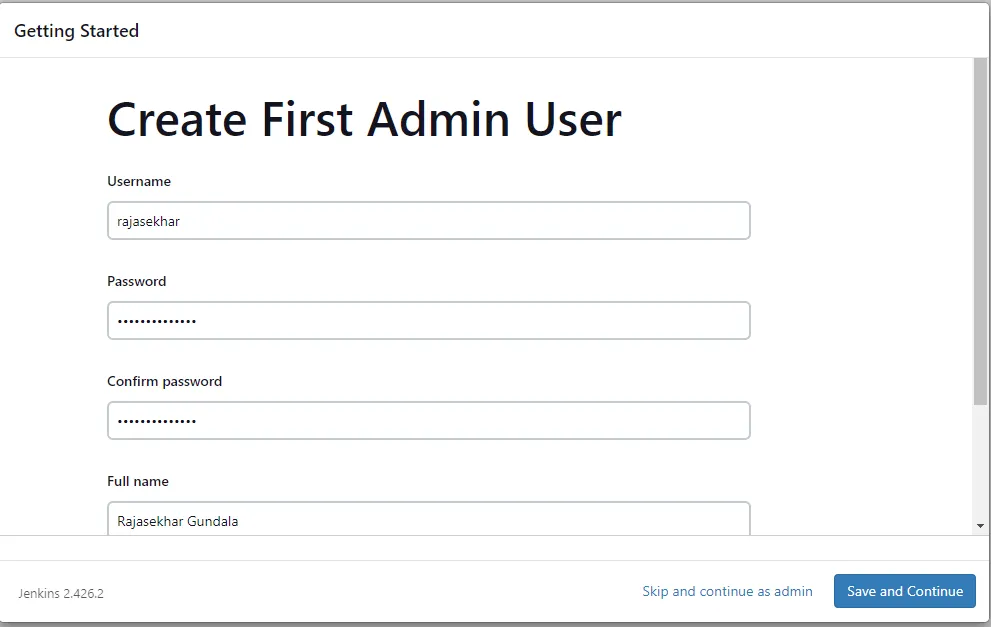

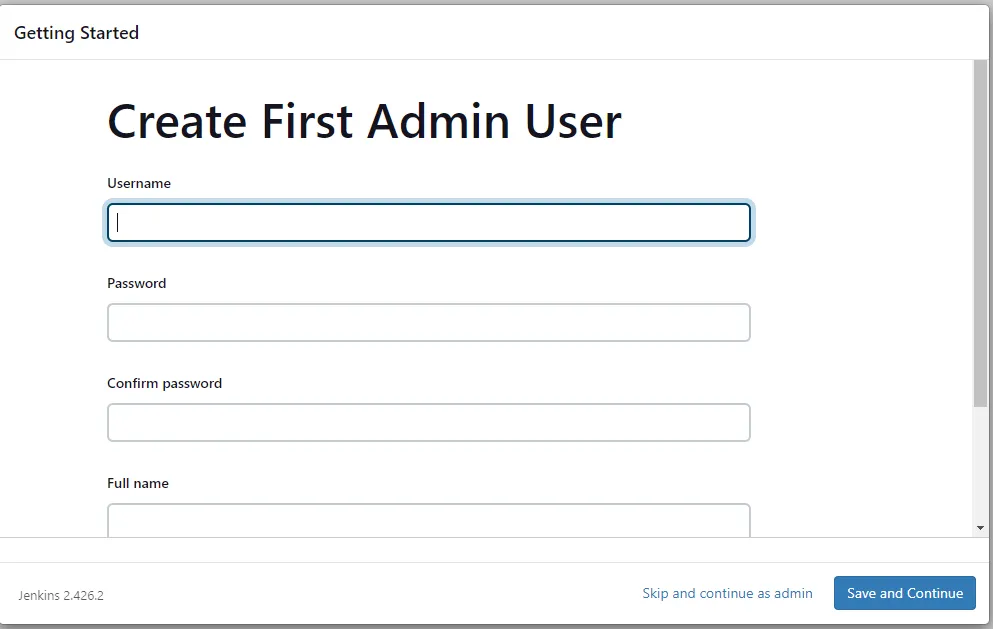

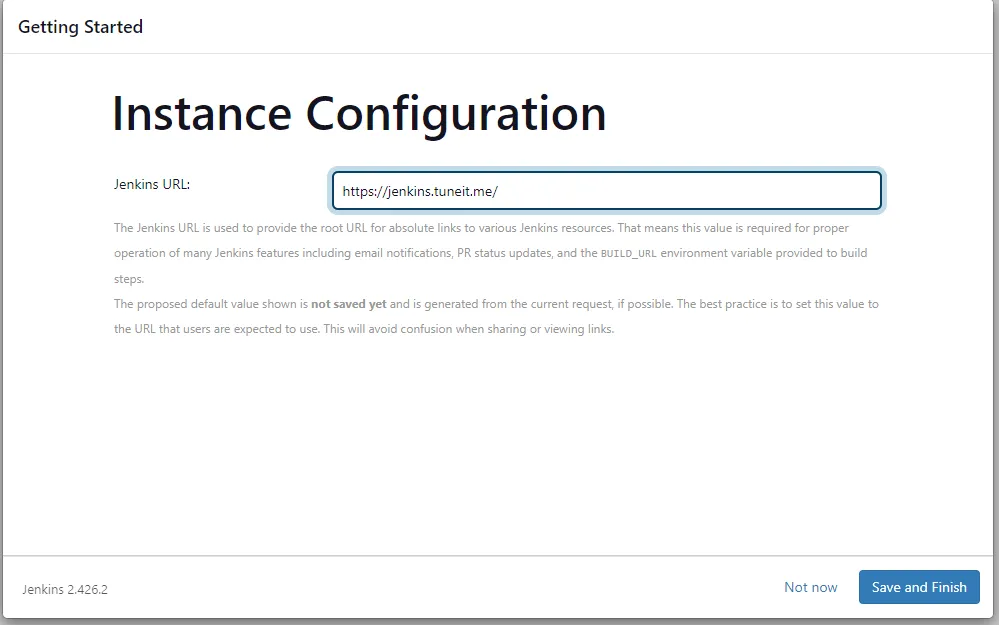

Open your browser and navigate to jenkins.example.com to access the site and complete the initial setup configuration.

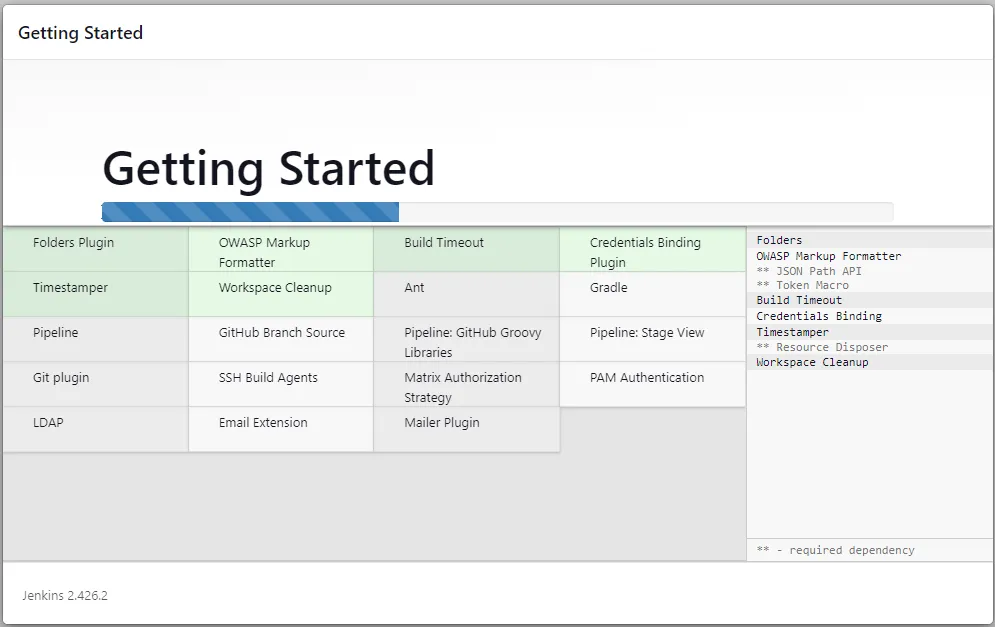

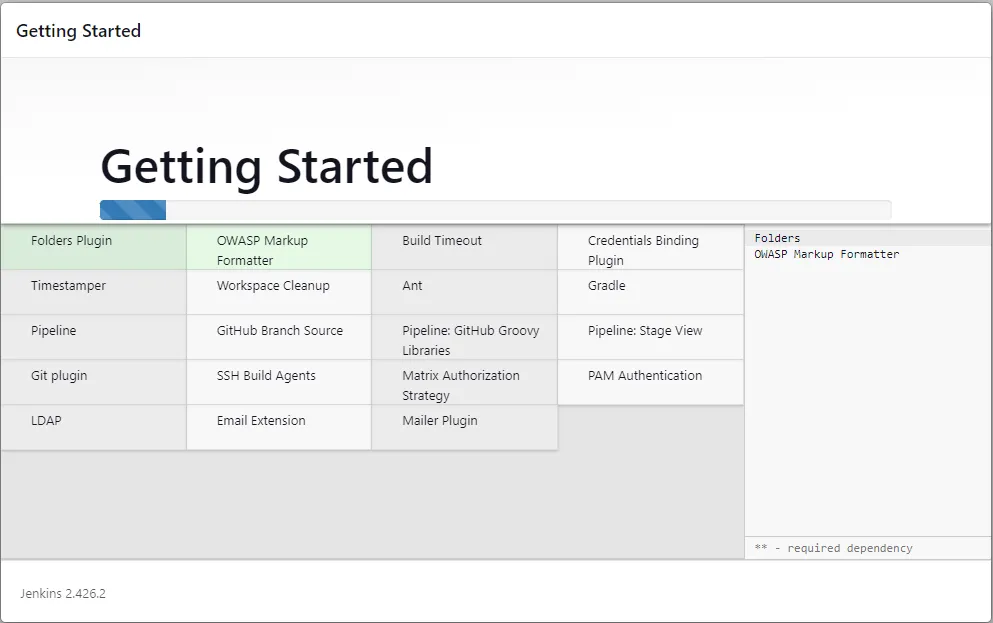

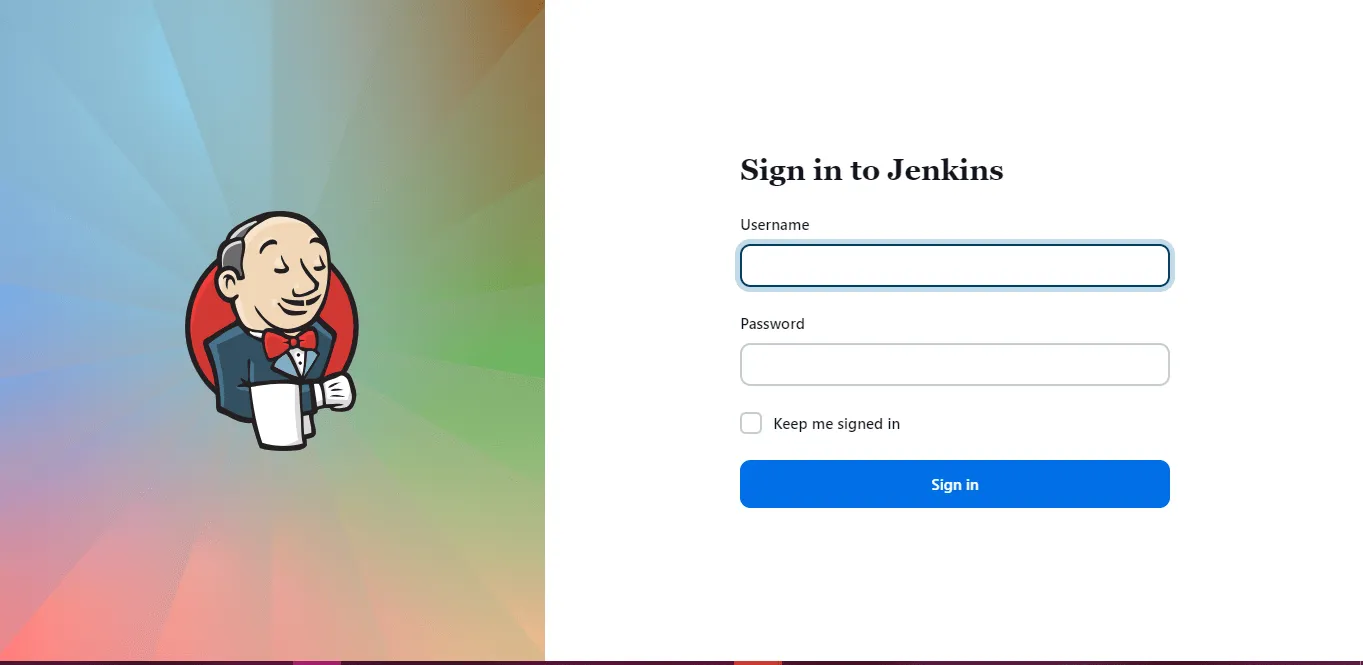

Reference Images from the Deployment:

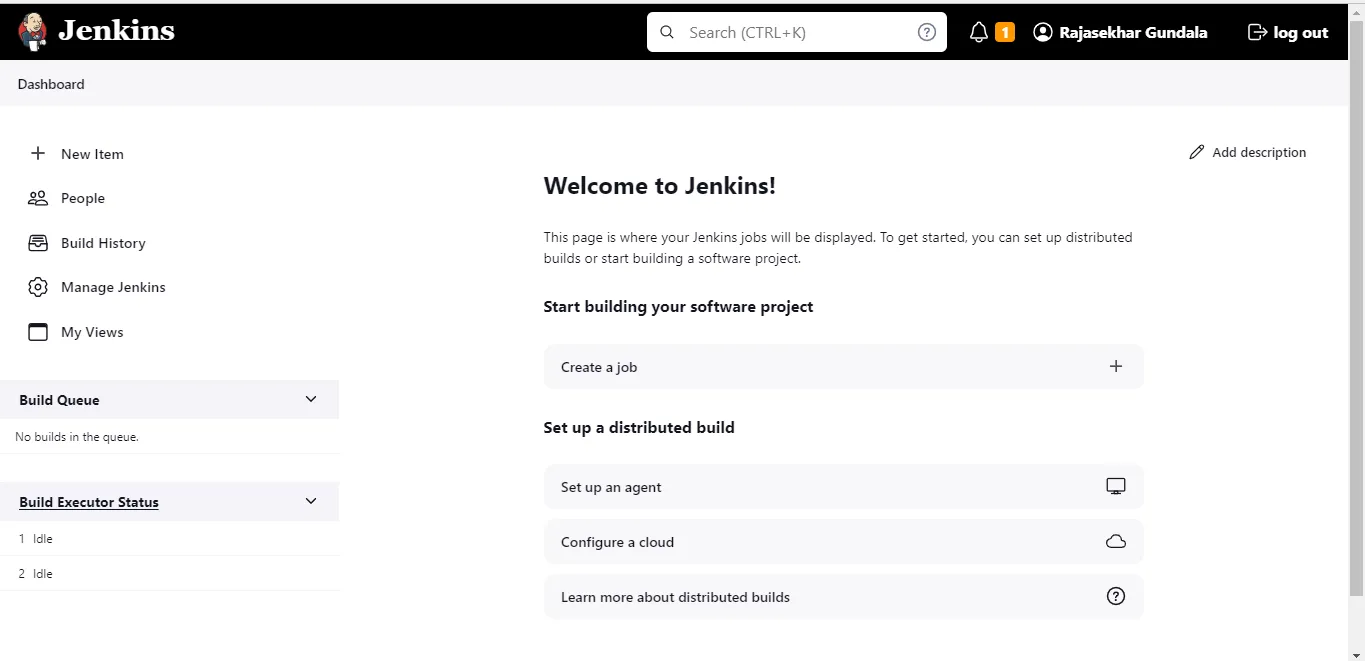

The deployment of Jenkins behind Caddy Reverse Proxy in our Docker Swarm is successful!

I hope you enjoyed reading this guide and gained some practical knowledge on how to install and persist Jenkins in a Docker Swarm environment.

If you enjoyed this tutorial, please share your thoughts by commenting below. It helps me bring more open-source self-hosting articles to the blog.

Stay tuned for more deployments in upcoming posts!
